SSL-175
Metal Roofing Panel Profile

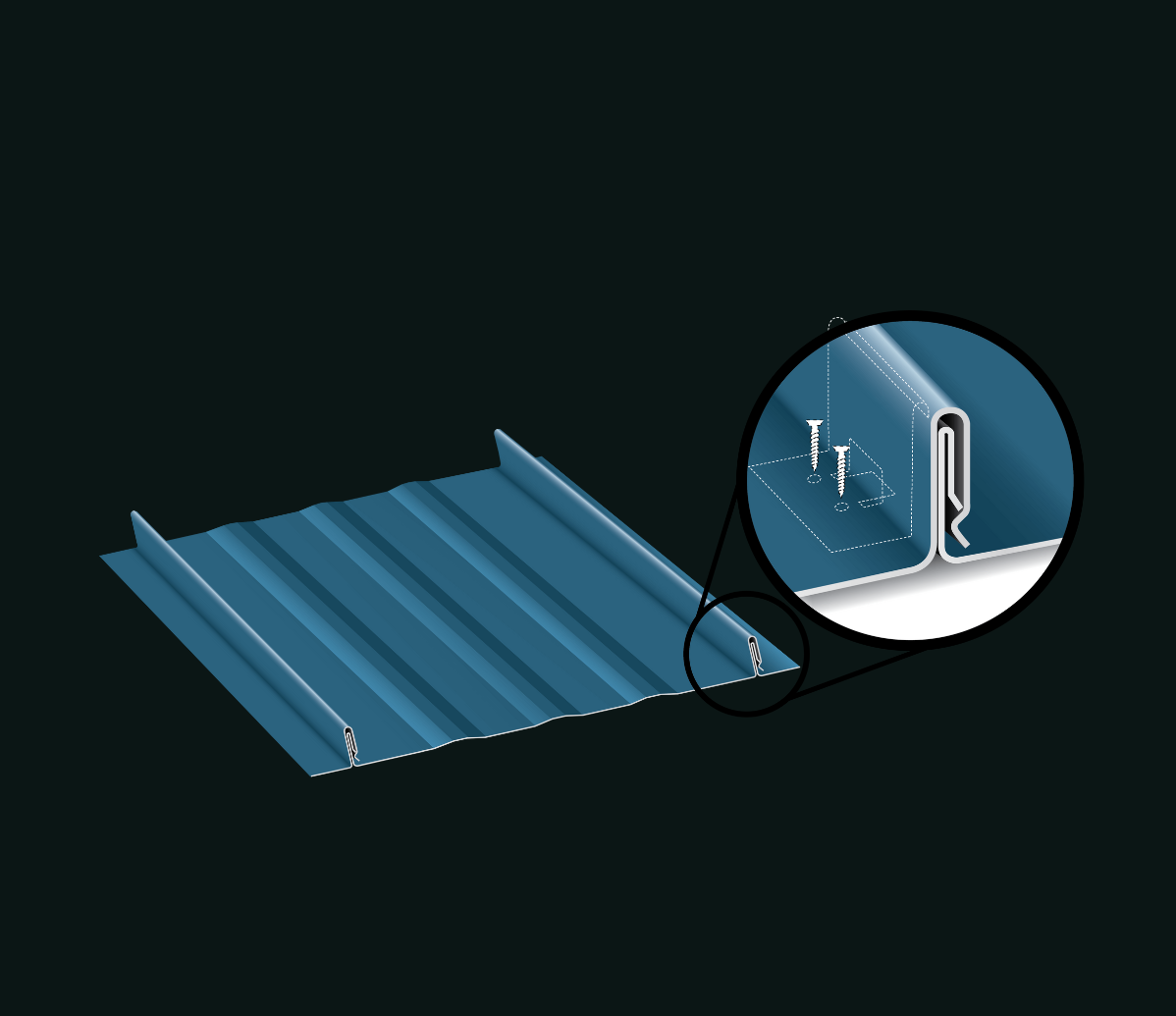

The Everlast Metals SSL-175 Snap Seam Standing Seam roofing panel utilizes snap together panels for quick installation and no field seaming required.
Installed over solid decking, this design allows for expansion & contraction caused by natural elements, providing a virtually leak proof roof with exceptional UL580 and ASTM E1592 wind uplift ratings.
The panel is available in a wide variety of materials and finishes. Substrates include G-90 Galvanized Steel, Galvalume® steel, and Aluminum. All painted products are Fluropon® coated.
An optional thermally applied pre-assembly in-seam sealant is available. The minimum slope requirement for an Everlast Metals Watertight Warranty is 1:12.
Frequently Asked Questions
Method of Application
Everlast Metals SSL-175 panels must be installed in a sequential pattern. Application of an Everlast Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate.
Storage Guidelines
Store Everlast panels in a dry, well-ventilated space, away from any moisture. If outdoor storage is necessary, use breathable covers like canvas or waterproof paper—avoid plastic, as it traps condensation. Keep panels off the ground, slightly inclined, and supported by wood or similar insulators. Extended exposure to sunlight can damage the protective film.
Panel & Testing Details
Panel Size
Panel Widths
10″, 14″, 18″
Seam Height
1.75″
Min. Panel Length
4’
Max. Panel Length
*Longer lengths require on-site rollforming
40’
Panel Option
Profiles
Flat
Minor Rib
Striated
Materials
Aluminum
Steel
Other
Tapered Panels
Weathertight warranty
Testing
Class 4 Hail Resistance
ASTM E 1592 Structural
ASTM E 1680 Air Penetration Roofs
ASTM E 331 Water Penetration
ASTM E 72 Structural
ASTM E 1646 Water Infiltration Roofs
PA 201 Impact Resistance
TAS100 Wind Driven Rain
TAS125(UL90) Florida Product Approval
ASTM E 330 Structural
ASTM E 283 Air Leakage
Resources & Warranty Information
Projects
Segment: Retail
Project: Cumberland Farms Store
Location: Vernon, CT
Quantity: 70 sq
Architect: Abaronian Associates
Segment: Healthcare
Project: Berks Heim Nursing Center
Location: Leesport, PA
Quantity: 75 sq
Segment: Municipal
Project: Price’s Landfill Remediation Project
Location: Egg Harbor, NJ
Quantity: 180 sq
Architect: CDM Architects
Segment: Hospitality
Project: Breakers Condos
Location: Atlantic City, NJ
Quantity: 16 sq
Segment: Municipal
Project: Town Library
Location: South Euclid, OH
Quantity: 20 sq
Architect: Design Group
Segment: Healthcare
Project: Mountainside Center
Location: Canaan, CT
Quantity: 54 sq
