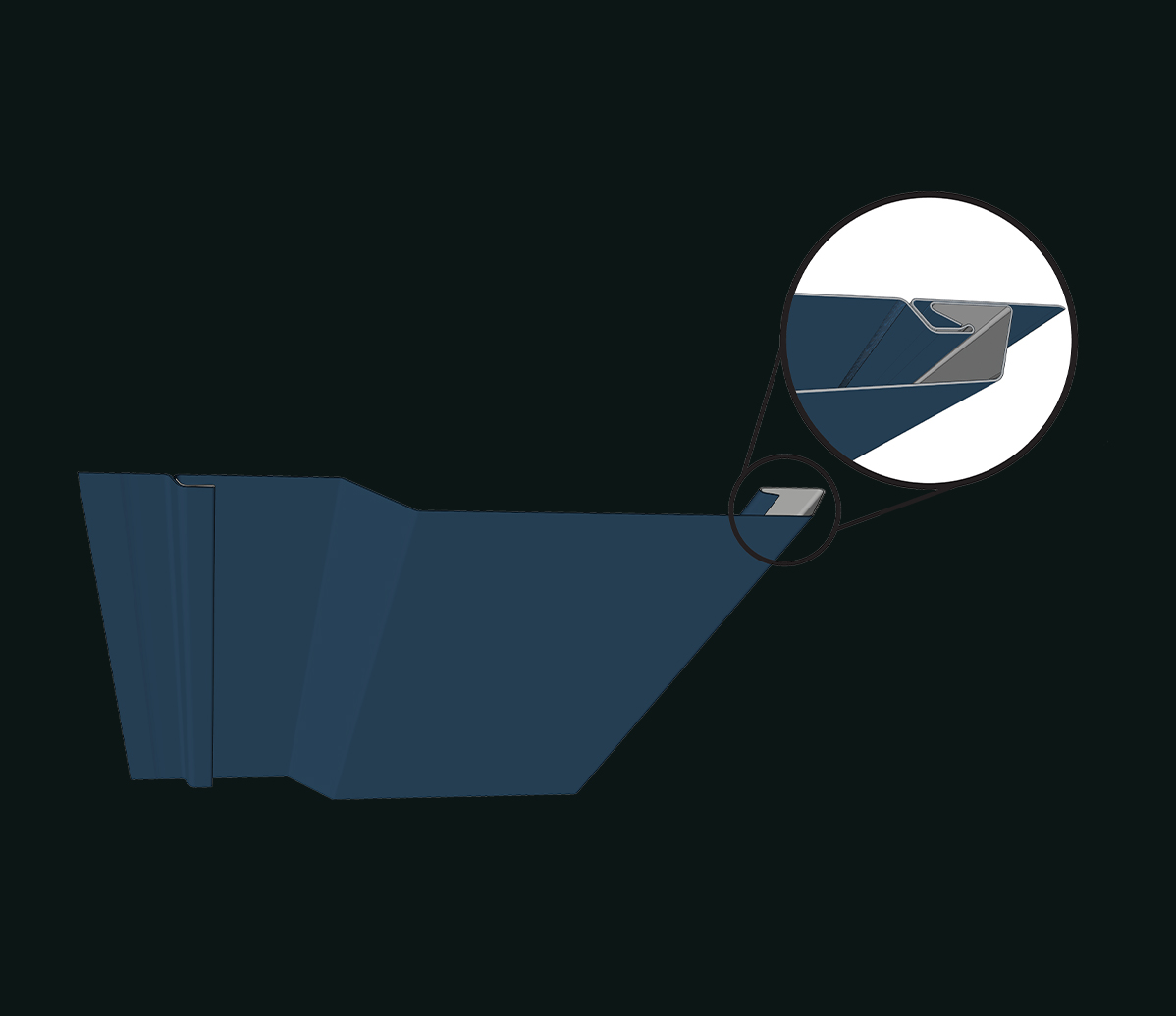

FL-550
Metal Wall & Soffit Panel Profile
The Everlast Metals FL-550 is a direct fastened metal wall panel with unique angles and rib patterns which can be combined to create an individualized style. Can be installed in a vertical or horizontal wall application. Ideal for fascia and equipment screen application as well.
The panel is available in a wide variety of materials and finishes. Substrates include G-90 Galvanized Steel, Galvalume® Steel. All painted products are Fluropon® coated.
Panel & Testing Details
Panel Size
Panel Widths
8”, 12″
Seam Height
0.875″
Min. Panel Length
2’
Max. Panel Length
40’
Panel Option
Profiles
Horizontal
Vertical
Materials
Steel
Other
Multiple Profile Options
Available for direct fastening
Resources & Warranty Information
Frequently Asked Questions
Method of Application
Everlast Metals FL-550 panels must be installed in a sequential pattern. Application of an Everlast Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate.
Storage Guidelines
Store Everlast panels in a dry, well-ventilated space, away from any moisture. If outdoor storage is necessary, use breathable covers like canvas or waterproof paper—avoid plastic, as it traps condensation. Keep panels off the ground, slightly inclined, and supported by wood or similar insulators. Extended exposure to sunlight can damage the protective film.
