DL-200
Metal Roofing Panel Profile
The Everlast Metals DL-200 Double-Lock Standing Seam roofing panel utilizes the proven seaming process of Mechanical Locking in conjunction with the floating action of a concealed clip assembly. This design allows for expansion & contraction caused by natural elements, providing a virtually leak proof roof with exceptional wind uplift ratings.
The panel is available in a wide variety of materials and finishes. Substrates include G-90 Galvanized Steel, Galvalume® steel, and Aluminum. All painted products are Fluropon® coated.
An optional thermally applied pre-assembly in-seam sealant is available. The minimum slope requirement for an Everlast Metals Watertight Warranty is 1:12.
Panel & Testing Details

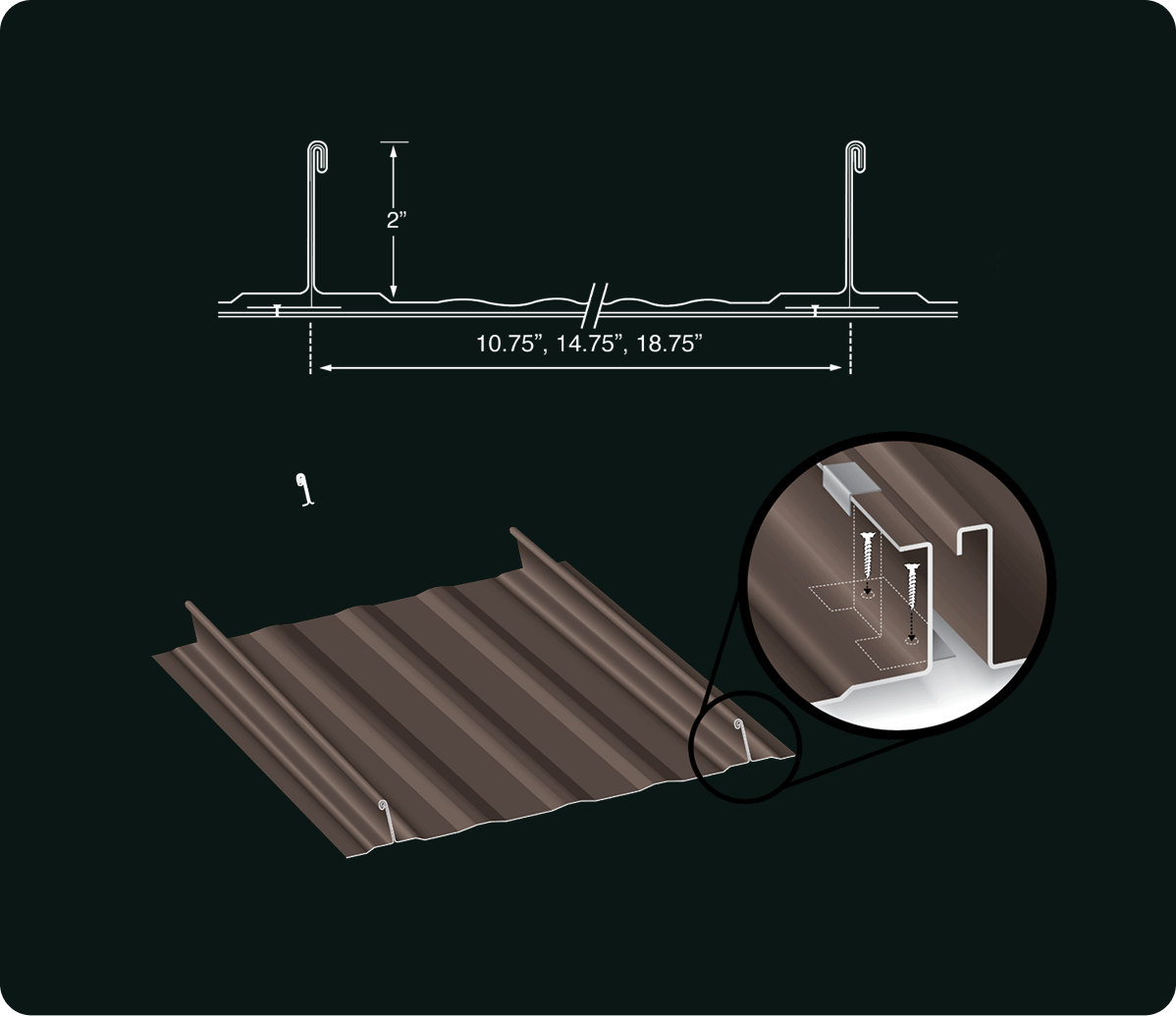

Panel Size
Panel Widths
10.75″, 14.75″, 18.75″
Seam Height
2″
Min. Panel Length
4’
Max. Panel Length
*Longer lengths require on-site rollforming
40’
Panel Option
Profiles
Flat
Minor Rib
Striated
Materials
Aluminum
Steel
Other
Tapered Panels
Weathertight warranty
Testing
ASTM 1592
UL 680
ASTM E1680
ASTM E 331 Water Penetration
Miami Dade County Testing
Resources & Warranty Information
Frequently Asked Questions
Method of Application
Everlast Metals DL-200 panels must be installed in a sequential pattern. Application of an Everlast Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate. Panels must be locked in the field by a mechanical seamer.
Storage Guidelines
Store Everlast panels in a dry, well-ventilated space, away from any moisture. If outdoor storage is necessary, use breathable covers like canvas or waterproof paper—avoid plastic, as it traps condensation. Keep panels off the ground, slightly inclined, and supported by wood or similar insulators. Extended exposure to sunlight can damage the protective film.
Projects
Segment: Hospitality
Project: Double Tree Inn
Location: Portland, ME
Quantity: 15 sq
Segment: Government
Project: Navy Yard
Location: Newport, RI
Quantity: 350 sq
Architect: Gale Associates
Segment: Government
Project: Cayuga SCF
Location: Moravia, NY
Quantity: 3000 sq
Segment: Government
Project: Livingston SCF
Location: Sonyea, NY
Quantity: 3000 sq
Segment: Government
Project: Riverview SCF
Location: Ogdensburg, NY
Quantity: 3000 sq
