DL-150
Metal Roofing Panel Profile

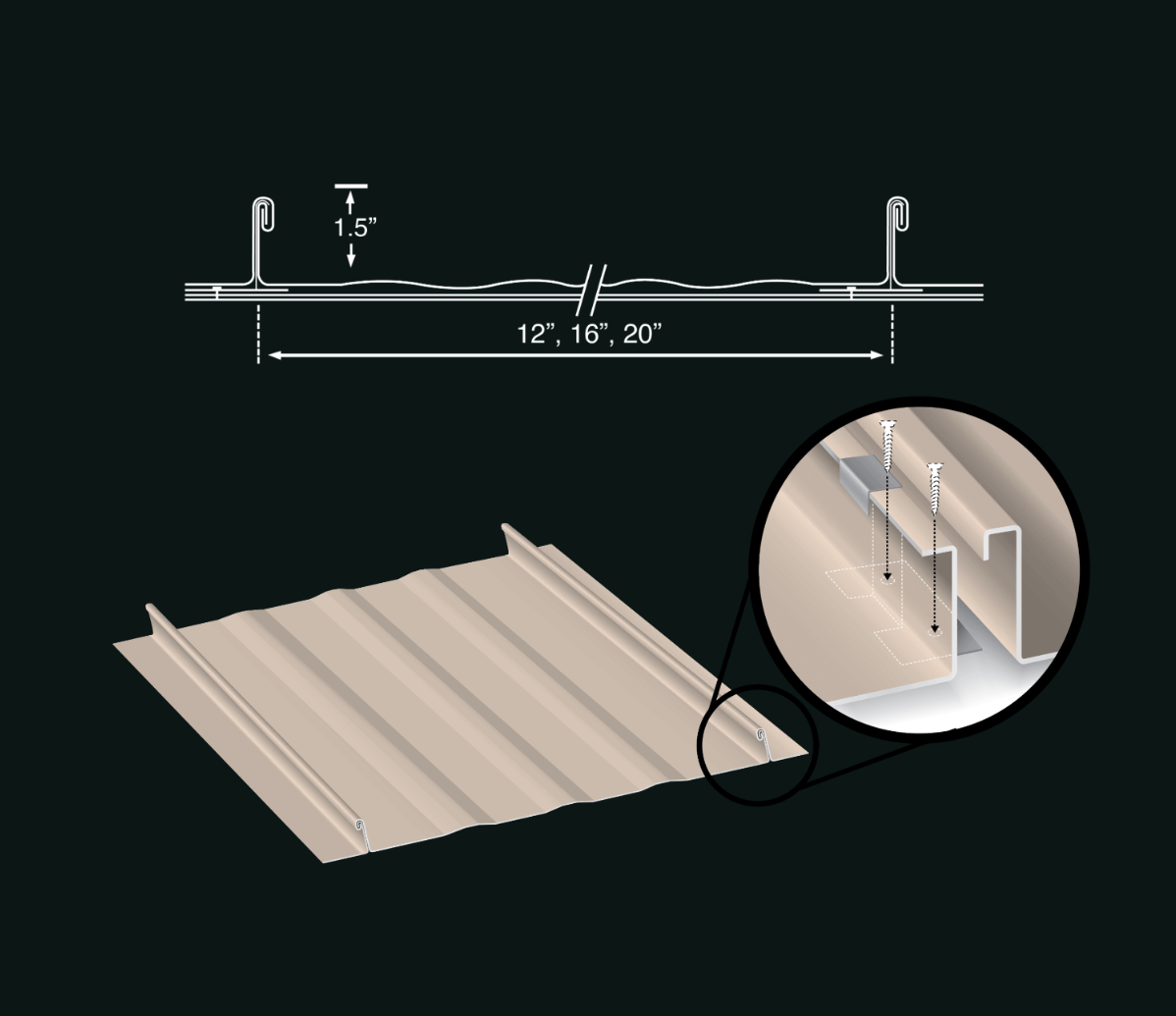

Everlast Metals DL-150 Double-Lock Standing Seam roofing panel utilizes the proven seaming process of Mechanical Locking in conjunction with the floating action of a concealed clip assembly. This design allows for expansion & contraction caused by natural elements, providing a virtually leak proof roof with exceptional wind uplift ratings.
The panel is available in a wide variety of materials and finishes. Substrates include G-90 Galvanized Steel, Galvalume® steel, and Aluminum. All painted products are Fluropon® coated.
An optional thermally applied pre-assembly in-seam sealant is available. The minimum slope requirement is 1.5:12.
Panel & Testing Details
Panel Size
Panel Widths
12″, 16″, 20″
Seam Height
1.5″
Min. Panel Length
4’
Max. Panel Length
*Longer lengths require on-site rollforming
40’
Panel Option
Profiles
Flat
Minor Rib
Striated
Materials
Aluminum
Steel
Other
Tapered Panels
Available for radius applications
Testing
ASTM E 1592 Structural
ASTM E 1680 Air Penetration Roofs
ASTM E 1646 Water Infiltration Roofs
TAS125(UL90) Florida Product Approval
TAS100 Wind Driven Rain
TAS201 Impact Resistance
Class 4 Hail Resistance
ASTM E 330 Structural
ASTM E 283 Air Leakage
ASTM E 331 Water Penetration
ASTM E 72 Structural
Resources & Warranty Information
Frequently Asked Questions
Method of Application
Everlast Metals DL-150 panels must be installed in a sequential pattern. Application of an Everlast Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate. Panels must be locked in the field by a mechanical seamer.
Storage Guidelines
Store Everlast panels in a dry, well-ventilated space, away from any moisture. If outdoor storage is necessary, use breathable covers like canvas or waterproof paper—avoid plastic, as it traps condensation. Keep panels off the ground, slightly inclined, and supported by wood or similar insulators. Extended exposure to sunlight can damage the protective film.
