Everlast Metals Tech Data RP-100

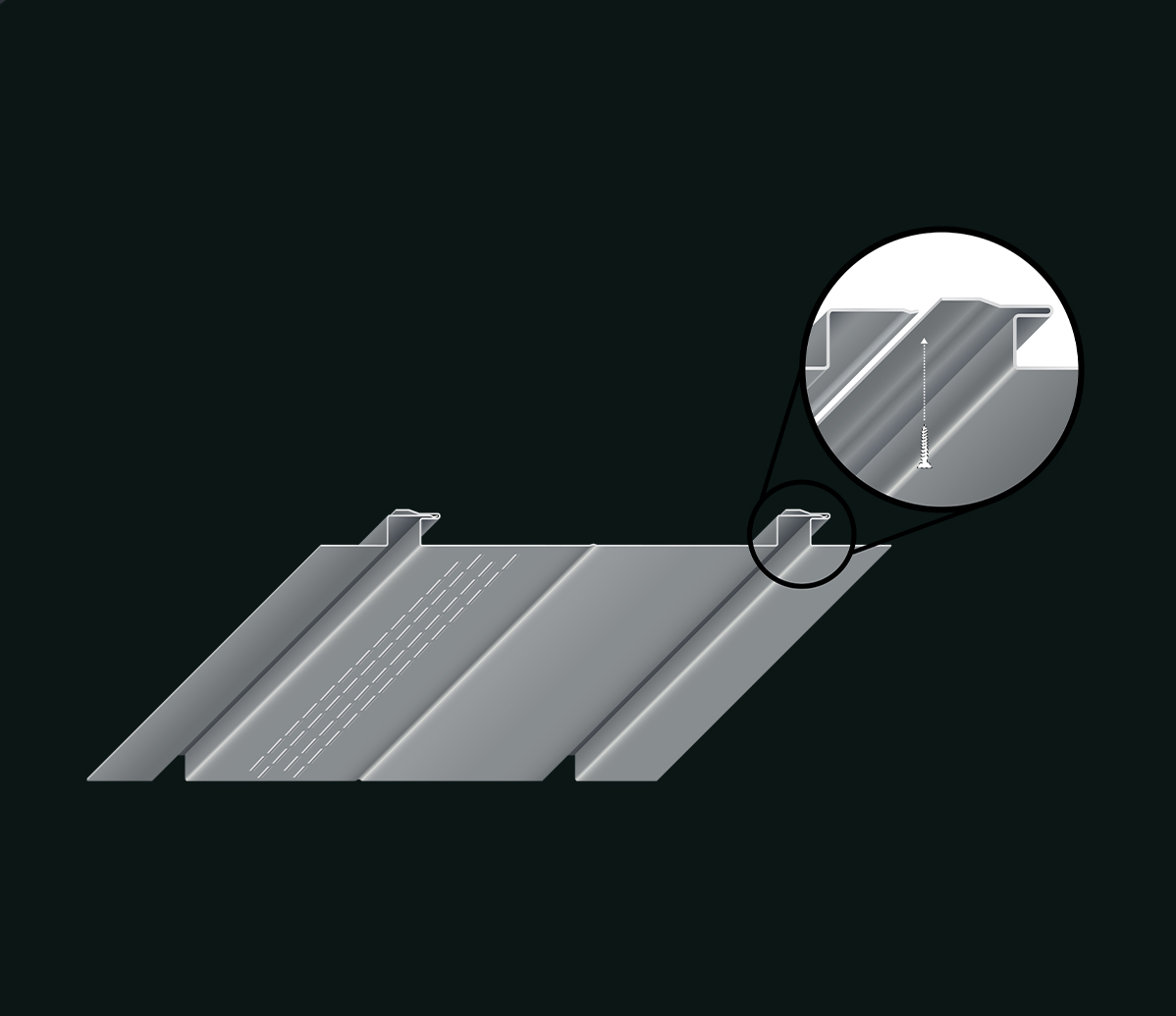

The Everlast Metals RP-100 Reveal Panel System is a versatile system, with a 1" wide reveal, that can be used as both a wall and soffit panel.
The panel is available in a wide variety of materials and finishes including Trinar coated G-90 Galvanized Steel, Galvalume® Steel, and Aluminum (venting optional), as well as Copper and Zinc.  The RP-100 is also available as a vented profile.
Everlast Metals RP-100 panels must be installed in a sequential pattern. Application of a Everlast Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate.  Acceptable substrates include light gauge framing, hat channels, and plywood.
Everlast Metals metal panels should be stored in a well-ventilated, dry place where no moisture can contact them. Moisture (from rain, snow, condensation, etc.) trapped between layers of material may cause water stains or white rust, which can affect the service life of the material and will detract from its appearance. If outdoor storage cannot be avoided, protect the panels with a ventilated canvas or waterproof paper cover. Do not use plastic, which can cause condensation. Keep the material off the ground in an inclined position with an insulator such as wood. Protective film may degrade or become brittle with long-term exposure to direct sunlight.
Panel Size
Panel Width: 11.75"
Seam Height: 1”
Min. Panel Length: 2.0’
Max. Panel Length: 20’ (Longer lengths require on-site rollforming)
