Warranties

20-Year Galvalume Substrate Warranty

35-Year Trinar Paint System Warranty

Are available on all profiles.

DL-200 and SSL-175 Panels

Have a 20-year Weather Tight Warranty available!




NS-100
Everlast Metals Tech Data NS-100

DESCRIPTION:
The Everlast Metals NS-100 Nail Strip Standing Seam roofing panel utilizes an interlocking panel system that doesn't require machine seaming or clips, which reduces labor costs.
Installed over solid decking, this design allows for expansion & contraction caused by natural elements; this along with an anti-siphon seam provide a virtually leak proof roof with exceptional UL580 wind uplift ratings.
The panel is available in a wide variety of materials and finishes including Trinar coated G-90 Galvanized Steel, Galvalume® Steel, and Aluminum, as well as Copper and Zinc.
An optional thermally applied pre-assembly in-seam sealant is available. The minimum slope requirement is 3:12

METHOD OF APPLICATION:
Everlast Metals NS-100 panels must be installed in a sequential pattern. Application of a Everlast Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate.


PRODUCT DATA:
Storage
Everlast Metals metal panels should be stored in a well-ventilated, dry place where no moisture can contact them. Moisture (from rain, snow, condensation, etc.) trapped between layers of material may cause water stains or white rust, which can affect the service life of the material and will detract from its appearance. If outdoor storage cannot be avoided, protect the panels with a ventilated canvas or waterproof paper cover. Do not use plastic, which can cause condensation. Keep the material off the ground in an inclined position with an insulator such as wood. Protective film may degrade or become brittle with long-term exposure to direct sunlight.

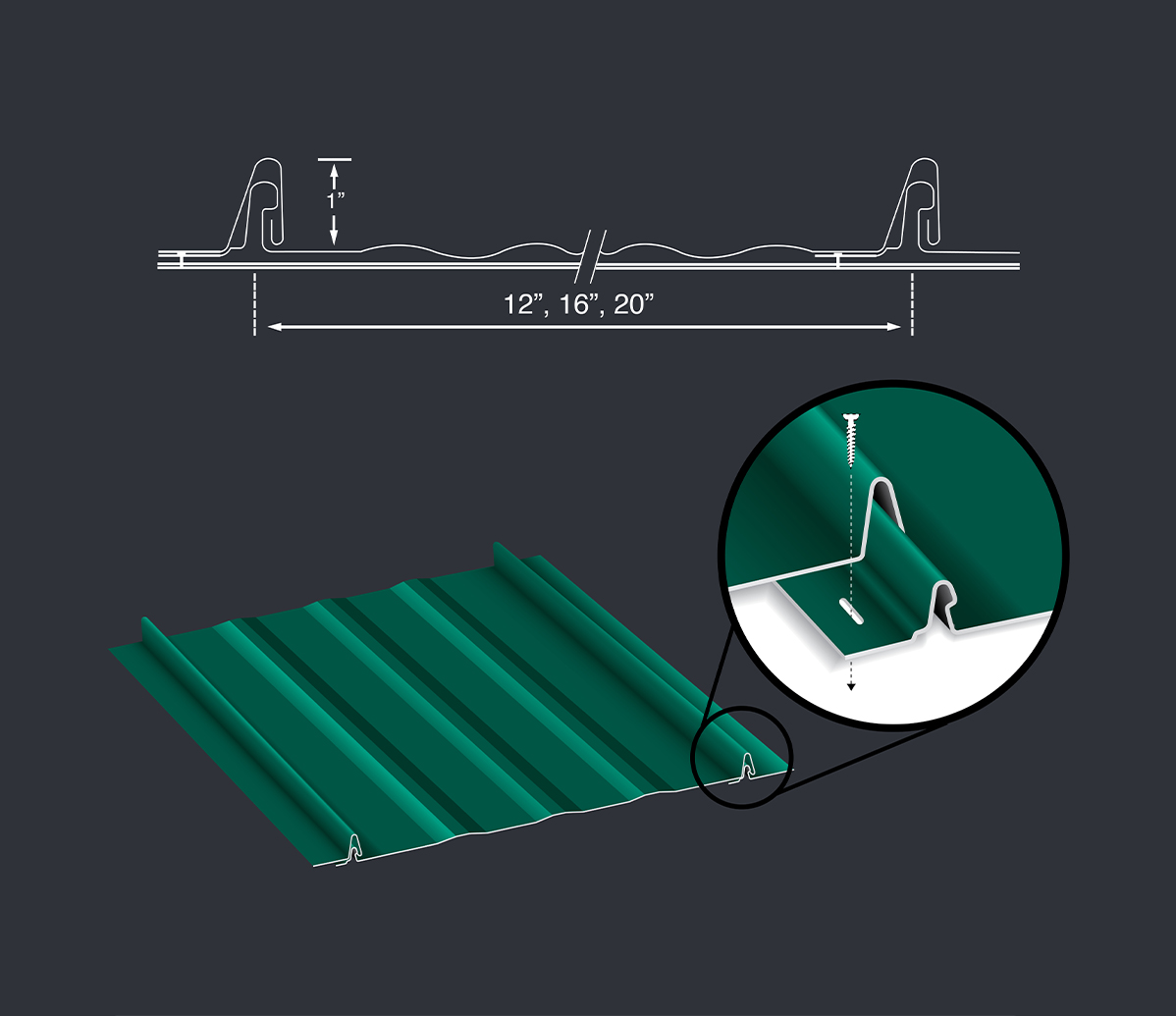

Panel Size
Panel Widths: 12", 16", 20"
Seam Height: 1”
Min. Panel Length: 2.0’
Max. Panel Length: 50’ (Longer lengths require on-site rollforming)



Testing

Class 4 Hail Resistance
TAS125(UL90) Florida Product Approval
TAS100 Wind-Driven Rain
