Warranties

20-Year Galvalume Substrate Warranty

35-Year Trinar Paint System Warranty

Are available on all profiles.

DL-200 and SSL-175 Panels

Have a 20-year Weather Tight Warranty available!




FP-100
Everlast Metals Tech Data FP-100

DESCRIPTION:

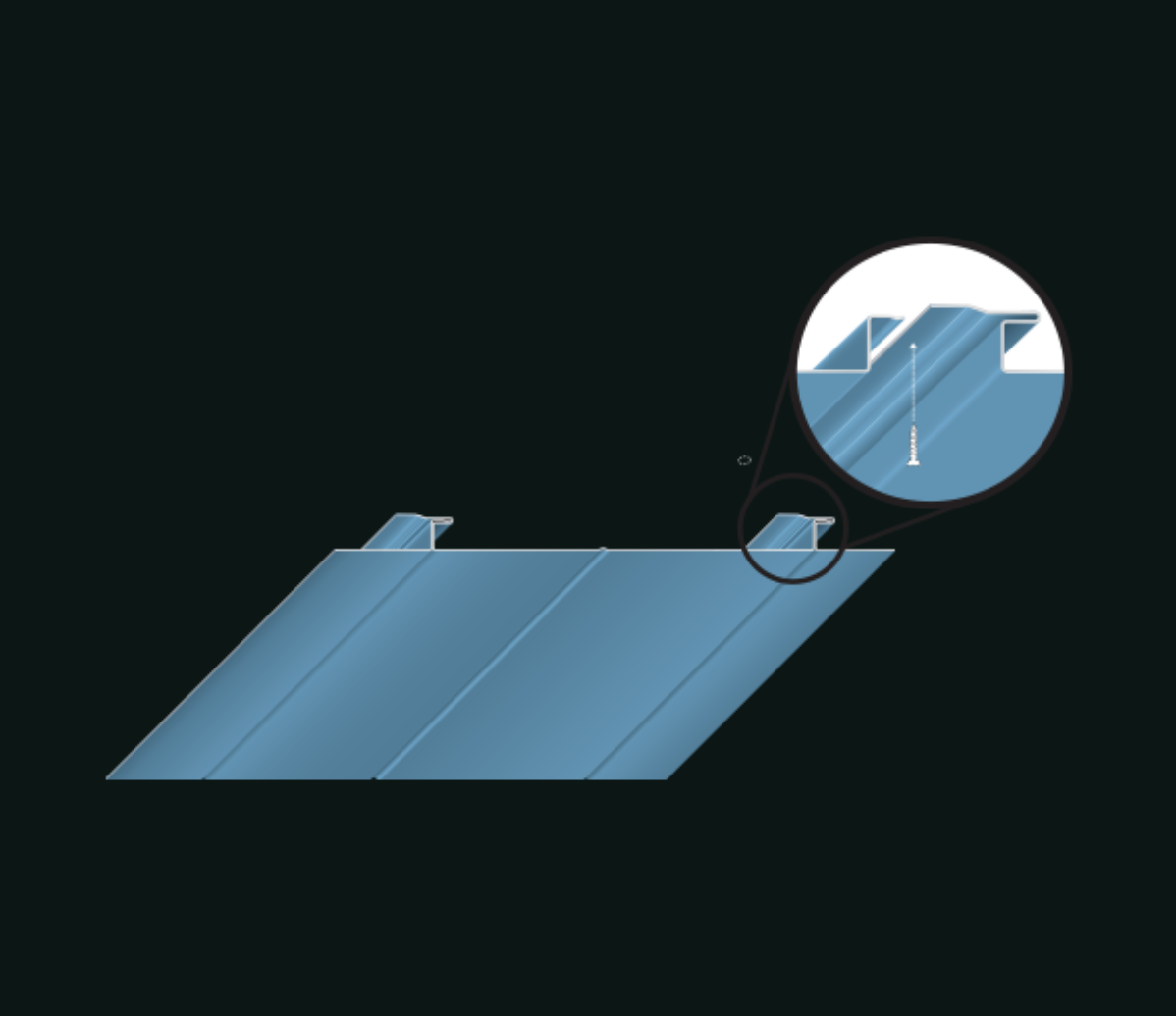

The Everlast Metals FP-100 Flush Panel System is a versatile system that can be used as both a wall and soffit panel.  The panel is available in a wide variety of materials and finishes including Trinar coated G-90 Galvanized Steel, Galvalume® Steel, and Aluminum (venting optional), as well as Copper and Zinc.  The FP-100 is also available as a vented profile.

METHOD OF APPLICATION:
Everlast Metals FP-100 panels must be installed in a sequential pattern. Application of a Everlast Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate.  Acceptable substrates include light gauge framing, hat channels, and plywood.




PRODUCT DATA:
Storage
Everlast Metals metal panels should be stored in a well-ventilated, dry place where no moisture can contact them. Moisture (from rain, snow, condensation, etc.) trapped between layers of material may cause water stains or white rust, which can affect the service life of the material and will detract from its appearance. If outdoor storage cannot be avoided, protect the panels with a ventilated canvas or waterproof paper cover. Do not use plastic, which can cause condensation. Keep the material off the ground in an inclined position with an insulator such as wood. Protective film may degrade or become brittle with long-term exposure to direct sunlight.

Panel Size
Panel Width: 12"
Seam Height: 1"
Min. Panel Length: 2.0'
Max. Panel Length: 20' (Longer lengths require on-site rollforming)
