Warranties

20-Year Galvalume Substrate Warranty

35-Year Trinar Paint System Warranty

Are available on all profiles.

DL-200 and SSL-175 Panels

Have a 20-year Weather Tight Warranty available!


ASL-150
Everlast Metals Tech Data ASL-150



DESCRIPTION:
The Everlast Metals ASL-150 Architectural Snap Seam Standing Seam roofing panel utilizes snap together panels for quick installation and no field seaming required.
Installed over solid decking, this design allows for expansion & contraction caused by natural elements, providing a virtually leak proof roof with exceptional UL580 wind uplift ratings.
The panel is available in a wide variety of materials and finishes including Trinar coated G-90 Galvanized Steel, Galvalume® Steel, and Aluminum, as well as Copper and Zinc.
An optional thermally applied pre-assembly in-seam sealant is available. The minimum slope requirement is 3:12

METHOD OF APPLICATION:
Everlast Metals ASL-150 panels must be installed in a sequential pattern. Application of a Everlast Metals approved underlayment prior to panel installation is recommended when installed over a solid substrate.


PRODUCT DATA:
Storage
Everlast Metals metal panels should be stored in a well-ventilated, dry place where no moisture can contact them. Moisture (from rain, snow, condensation, etc.) trapped between layers of material may cause water stains or white rust, which can affect the service life of the material and will detract from its appearance. If outdoor storage cannot be avoided, protect the panels with a ventilated canvas or waterproof paper cover. Do not use plastic, which can cause condensation. Keep the material off the ground in an inclined position with an insulator such as wood. Protective film may degrade or become brittle with long-term exposure to direct sunlight.

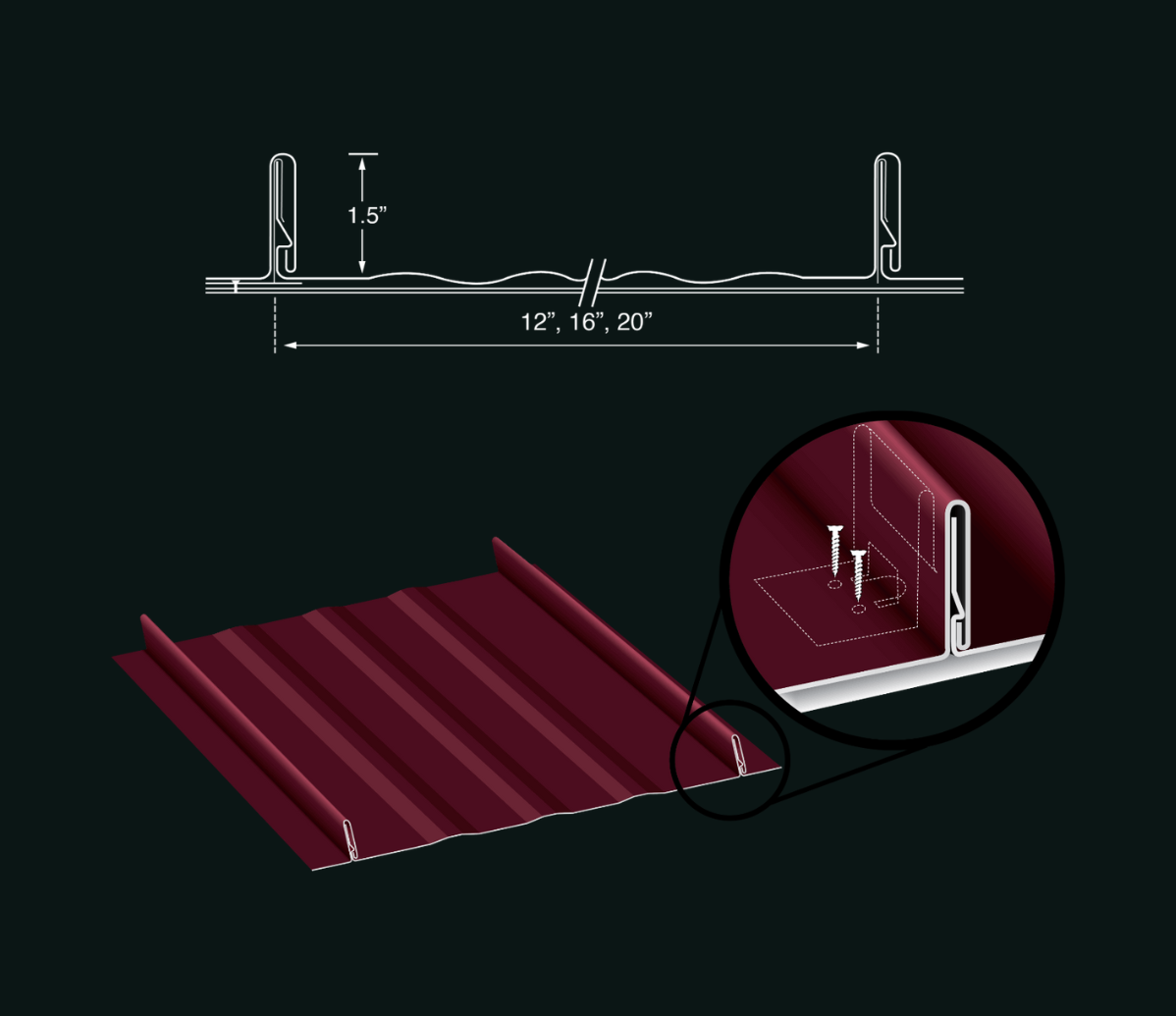

Panel Size
Panel Widths: 12", 16", 20"
Seam Height: 1.5”
Min. Panel Length: 2.0’
Max. Panel Length: 50’ (Longer lengths require on-site rollforming)


Testing
ASTM E 1592 Structural
ASTM E 1680 Air Penetration Roofs
ASTM E 1646 Water Infiltration Roofs
TAS100 Wind Driven Rain
PA 201 Impact Resistance
Class 4 Hail Resistance
ASTM E 330 Structural
ASTM E 283 Air Leakage
ASTM E 331 Water Penetration
ASTM E 72 Structural
